264-160 | WAGO

2-wire terminal strip, 10 pole, 0.08-2.5 mm², AWG 28-12, straight, 24 A, 800 V, spring-cage connection, 264-160

Order No.: 43P9848
EAN: 4044918423694
MPN:
264-160
Series: 264

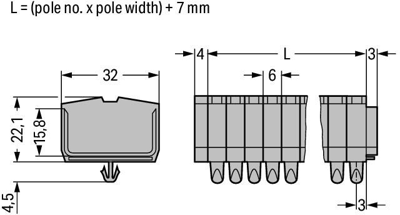

264-160 WAGO Connecting Blocks Image 1

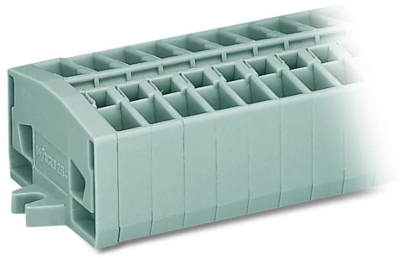

264-160 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.7354 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.7354 €

Through terminal block, 264-160, WAGO

Quick and easy connections are guaranteed with this through terminal block 264-160. Whether for use in industry or building installations, our rail-mount through terminal blocks allow you to quickly and securely connect electrical conductors. They’re perfect for either classic through-wiring or distributing potential, depending on the variant. Our mini rail-mount terminal block is rated for 800 V and is designed to handle a rated current of up to 24 A. Conductors should only be connected to this through terminal block if their strip length is between 8 mm and 9 mm. Featuring conductor terminals along with CAGE CLAMP, this connector is highly versatile. Our CAGE CLAMP connection offers a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². Up to ten potentials / ten poles can be connected to this terminal strip using twenty clamping points on one level. The gray housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. You can connect copper conductors via front-entry wiring.

Technical specifications
Pin number 10 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 800 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Rated current 24 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
