264-134 | WAGO

2-wire terminal block Ex e II, 4 pole, 0.08-2.5 mm², AWG 28-12, straight, 23 A, 690 V, spring-cage connection, 264-134

Order No.: 43P9831
EAN: 4044918423076
MPN:
264-134
Series: 264

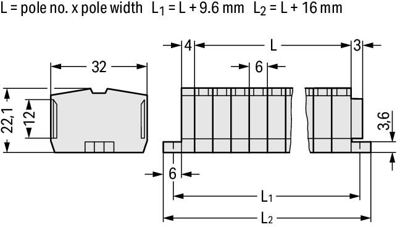

264-134 WAGO Connecting Blocks Image 1
264-134 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.0226 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.0226 €

Through terminal block, 264-134, WAGO

This through terminal block 264-134 is designed to connect conductors quickly and easily. Whether in industrial or building applications, our rail-mount through terminal blocks are the perfect solution to quickly and securely connect electrical conductors. Depending on the version, you can use them for either typical through-wiring or potential distribution. Conductors can only be connected to this through terminal block if their strip length is between 8 mm and 9 mm. Featuring conductor terminals along with CAGE CLAMP, this product outperforms the competition. Our highly-rated and maintenance-free CAGE CLAMP connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don't need to crimp ferrules. Depending on the conductor type, this through terminal block is designed for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It has one level. Four potentials can connect four poles using the eight clamping points The light gray housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. The front-entry wiring means you can connect copper conductors.

Technical specifications
Pin number 4 pole
Cable cross-section 0.08-2.5 mm²
Rated voltage 690 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Rated current 23 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
