4-wire terminal block Ex e II, 11 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, straight, 30 A, 550 V, spring-cage connection, 262-291

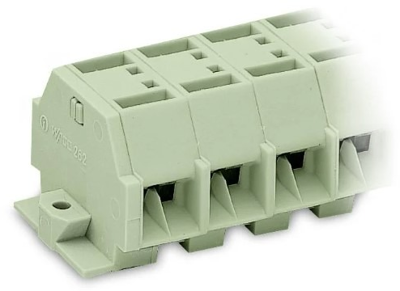

Through terminal block, 262-291, WAGO
This through terminal block 262-291 is designed to connect conductors quickly and easily. Our mini rail-mount terminal blocks are perfect for working in tight spaces thanks to their compact design. With various mounting and actuation options, they offer complete flexibility. Conductors should only be connected to this through terminal block if their strip length is between 9 mm and 10 mm. Featuring conductor terminals along with CAGE CLAMP, this connector outperforms the competition. Our reliable and maintenance-free CAGE CLAMP connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don't need to crimp ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². It features one level and forty-four clamping points for connecting eleven potentials / 11 poles. The light gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. The side-entry wiring allows you to connect copper conductors.
| Pin number | 11 pole | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage | 550 V | |
| Design | straight | |
| AWG cross-section | AWG 20-12 | |
| Contact connection | spring-cage connection | |
| Grid | 12 mm | |
| Rated current | 30 A |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
