262-289 | WAGO

4-wire terminal block Ex e II, 9 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, straight, 30 A, 550 V, spring-cage connection, 262-289

Order No.: 43P9685
EAN: 4044918639231
MPN:
262-289
Series: 262

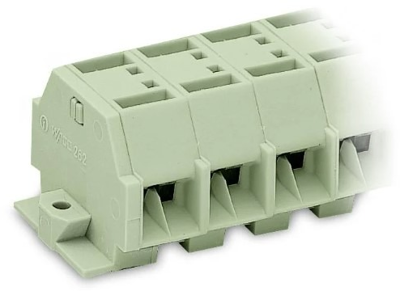

262-289 WAGO Connecting Blocks Image 1

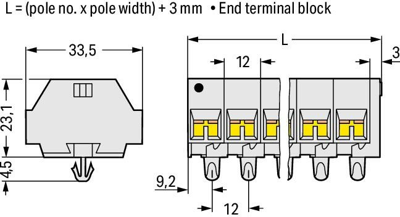

262-289 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
8.6751 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
8.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.6751 €

Through terminal block, 262-289, WAGO

Connect conductors quickly and securely with this through terminal block 262-289. Whether for use in industry or building installations, our rail-mount through terminal blocks make it easy to quickly and securely connect electrical conductors. They’re perfect for either classic through-wiring or distributing potential, depending on the variant. Conductors can only be connected to this through terminal block if their strip length is between 9 mm and 10 mm. Featuring conductor terminals along with CAGE CLAMP, this connector is highly versatile. Our tried-and-tested universal connection known as CAGE CLAMP is industry-leading when it comes to connection technology and electrical interconnections. Depending on the conductor type, this through terminal block is ideal for conductor cross sections ranging from 0.5 mm² to 4 mm². It comes with one level and thirty-six clamping points for connecting nine potentials / 9 poles. The light gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. You can connect copper conductors via side-entry wiring.

Technical specifications
Pin number 9 pole
Cable cross-section 0.5-4.0 mm²
Rated voltage 550 V
Design straight
AWG cross-section AWG 20-12
Contact connection spring-cage connection
Grid 12 mm
Rated current 30 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
