262-287 | WAGO

4-wire terminal block Ex e II, 7 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, straight, 30 A, 550 V, spring-cage connection, 262-287

Order No.: 43P9683
EAN: 4044918639217
MPN:
262-287
Series: 262

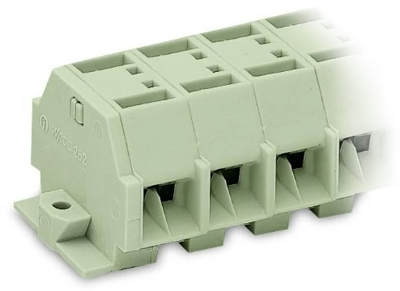

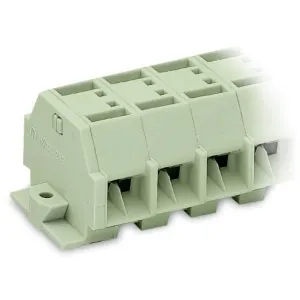

262-287 WAGO Connecting Blocks Image 1
262-287 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.5926 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
6.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.5926 €

Through terminal block, 262-287, WAGO

This through terminal block 262-287 streamlines wire connections, making them both quick and easy. Our mini rail-mount terminal blocks are the perfect choice for working in confined spaces. A large selection of mounting and actuation variants means you can find a suitable mini terminal block for every purpose. This also means you can adapt the terminal blocks to your unique requirements. Conductors can only be connected to this through terminal block if their strip length is between 9 mm and 10 mm. Featuring conductor terminals along with CAGE CLAMP, this connector is highly versatile. Our CAGE CLAMP connection offers a secure and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². It comes with one level and twenty-eight clamping points that you can use to connect seven potentials / 7 poles. The light gray housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. The side-entry wiring makes it possible to connect copper conductors.

Technical specifications
Pin number 7 pole
Cable cross-section 0.5-4.0 mm²
Rated voltage 550 V
Design straight
AWG cross-section AWG 20-12
Contact connection spring-cage connection
Grid 12 mm
Rated current 30 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
