262-282 | WAGO
4-wire terminal block Ex e II, 2 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, straight, 30 A, 550 V, spring-cage connection, 262-282

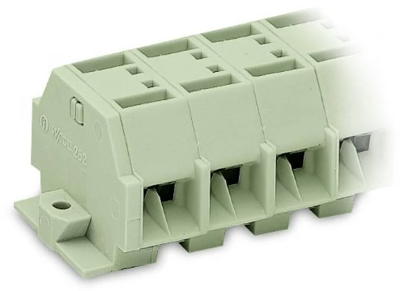

Through terminal block, 262-282, WAGO
Our through terminal block 262-282 is the ideal way to connect conductors quickly and easily. Our mini rail-mount terminal blocks are perfect for working in small spaces thanks to their compact design. With various mounting and actuation options, they offer maximum flexibility. Ensure that the strip lengths are between 9 mm and 10 mm when connecting conductors to this through terminal block. Featuring conductor terminals along with CAGE CLAMP, this product outperforms the competition. Our CAGE CLAMP connection offers a convenient and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Depending on the conductor type, this through terminal block is ideal for conductor cross sections ranging from 0.5 mm² to 4 mm². It features one level and eight clamping points for connecting two potentials / 2 poles. The light gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. You can connect copper conductors via side-entry wiring.
| Pin number | 2 pole | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage | 550 V | |
| Design | straight | |
| AWG cross-section | AWG 20-12 | |
| Contact connection | spring-cage connection | |
| Grid | 12 mm | |
| Rated current | 30 A |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
