262-255 | WAGO

4-wire terminal strip, 5 pole, pitch 12 mm, 0.08-4.0 mm², AWG 28-12, straight, 32 A, 630 V, spring-cage connection, 262-255

Order No.: 43P9668
EAN: 4044918641685
MPN:
262-255
Series: 262

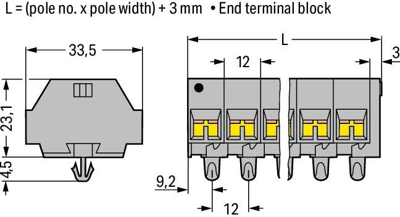

262-255 WAGO Connecting Blocks Image 1

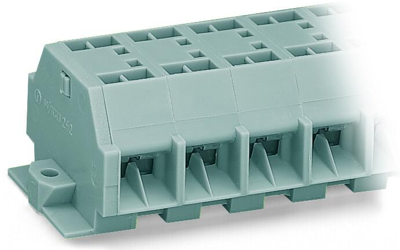

262-255 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.8314 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.8314 €

Through terminal block, 262-255, WAGO

Our through terminal block 262-255 is the ideal way to connect conductors quickly and securely. Whether in industrial or building applications, our rail-mount through terminal blocks are the perfect solution to quickly and securely connect electrical conductors. Depending on the variant, you can use them for either typical through-wiring or potential distribution. Our mini rail-mount terminal block is rated for 690 V and is designed for use with a rated current of up to 32 A. Conductors should only be connected to this through terminal block if their strip length is between 9 mm and 10 mm. This product features conductor terminals and utilizes CAGE CLAMP. Our reliable and maintenance-free CAGE CLAMP connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don't need to crimp ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 4 mm². Up to five potentials / five poles can be connected to this terminal strip using twenty clamping points on one level. The gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. You can connect copper conductors via side-entry wiring.

Technical specifications
Pin number 5 pole
Cable cross-section 0.08-4.0 mm²
Rated voltage 630 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Grid 12 mm
Rated current 32 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
