4-wire terminal block Ex e II, 2 pole, pitch 12 mm, 0.5-4.0 mm², AWG 20-12, straight, 30 A, 550 V, spring-cage connection, 262-232
Through terminal block, 262-232, WAGO

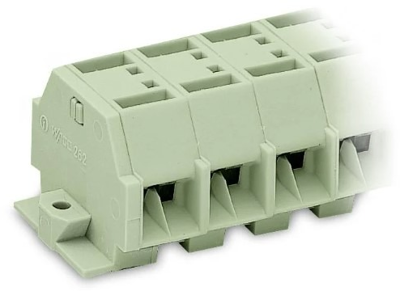

Quick and easy connections are guaranteed with this through terminal block 262-232. Our mini rail-mount terminal blocks are perfect for working in small spaces thanks to their compact design. With various mounting and actuation options, they offer complete flexibility. Ensure that the strip lengths are between 9 mm and 10 mm when connecting conductors to this through terminal block. This product features conductor terminals and utilizes CAGE CLAMP. Our CAGE CLAMP connection provides a convenient and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². It features one level and eight clamping points that you can use to connect two potentials / 2 poles. The light gray housing is made of polyamide (PA66) for insulation. This mini rail-mount terminal block is operated with an operating tool. You can connect copper conductors via side-entry wiring.
| Pin number | 2 pole | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated voltage | 550 V | |
| Design | straight | |
| AWG cross-section | AWG 20-12 | |
| Contact connection | spring-cage connection | |

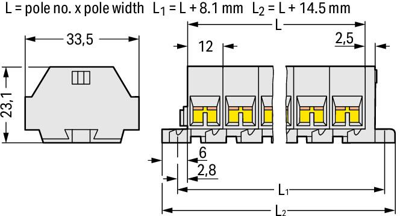

| Grid | 12 mm | |
| Rated current | 30 A |
| Country of origin | DE |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
