262-207 | WAGO

4-wire terminal strip, 7 pole, pitch 12 mm, 0.08-4.0 mm², AWG 28-12, straight, 32 A, 630 V, spring-cage connection, 262-207

Order No.: 43P9647
EAN: 4044918639354
MPN:
262-207
Series: 262

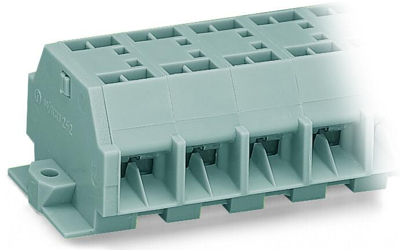

262-207 WAGO Connecting Blocks Image 1

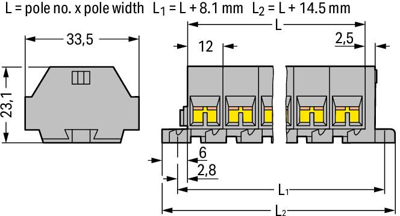

262-207 WAGO Connecting Blocks Image 2
Image may differ
Unit Price (€ / pc.)
6.4141 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
6.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.4141 €

Through terminal block, 262-207, WAGO

Easily, quickly and safely connect conductors with this through terminal block 262-207. Our mini rail-mount terminal blocks are the perfect choice when space is limited. A large selection of mounting and actuation variants means you can find a suitable mini terminal block for every purpose. This also means you can adapt the terminal blocks to your unique requirements. Our mini rail-mount terminal block is rated for 630 V and is designed for use with a rated current of up to 32 A. Ensure that the strip lengths are between 9 mm and 10 mm when connecting conductors to this through terminal block. Featuring conductor terminals along with CAGE CLAMP, this connector outperforms the competition. Our CAGE CLAMP connection provides a secure and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This through terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 4 mm². Up to seven potentials / seven poles can be connected to this terminal strip using twenty-eight clamping points on one level. The gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. You can connect copper conductors thanks to side-entry wiring.

Technical specifications
Pin number 7 pole
Cable cross-section 0.08-4.0 mm²
Rated voltage 630 V
Design straight
AWG cross-section AWG 28-12
Contact connection spring-cage connection
Grid 12 mm
Rated current 32 A
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
