262-138 | WAGO

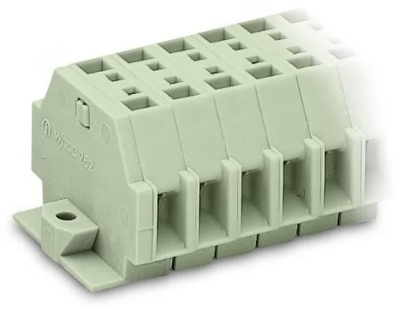

2-wire terminal block Ex e II, 8 pole, pitch 7 mm, 0.5-4.0 mm², AWG 20-12, straight, 23 A, 550 V, spring-cage connection, 262-138
Through terminal block, 262-138, WAGO
Our through terminal block 262-138 simplifies electrical installations. Whether for industrial or building applications, you can use our through terminal blocks to connect electrical conductors quickly and safely. We offer variants for both classic through-wiring and potential distribution. Conductors can only be connected to this through terminal block if their strip length is between 9 mm and 10 mm. This product features conductor terminals and utilizes CAGE CLAMP. Our celebrated universal connection known as CAGE CLAMP is the industry standard when it comes to connection technology and electrical interconnections. This through terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 4 mm². It features one level and sixteen clamping points for connecting eight potentials / 8 poles. The light gray housing is made of polyamide (PA66) for insulation. An operating tool is used to operate this mini rail-mount terminal block. The side-entry wiring makes it possible to connect copper conductors.
| Filter | Property | Value |
|---|---|---|
| Grid | 7 mm | |
| Pin number | 8 pole | |
| Cable cross-section | 0.5-4.0 mm² | |
| Contact connection | spring-cage connection | |
| Design | straight | |
| Rated current | 23 A | |
| Rated voltage | 550 V | |
| AWG cross-section | AWG 20-12 |
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
