WAGO

2091-1104/002-000 | WAGO

Female connector with grip plate, 4 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1104/002-000

Order No.:  43P1218
MPN:
2091-1104/002-000
Series:  2091
EAN: 4050821411642
WAGO
default L
front L
default S
front S
Images may differ

Key Specification:

Version socket
Pin number 4 pole
Grid 3.5 mm
Cable cross-section 0.2-1.5 mm²
AWG cross-section AWG 24-14
Show 7 variants
Technical specifications Download Datasheet
Unit Price (€ / pc.)
2.9393 € *
Available: 183 pcs.
Leadtime: 2 Weeks **
Total Price:
2.94 € *
Quantity
Price per unit*
1 pcs.
2.9393 €
10 pcs.
2.6418 €
100 pcs.
2.3800 €
*incl. VAT plus shipping costs
**Subject to prior sale
Add to comparison list Print
Description
Technical specifications
Download
Logistics
Compliance
Variations
Description

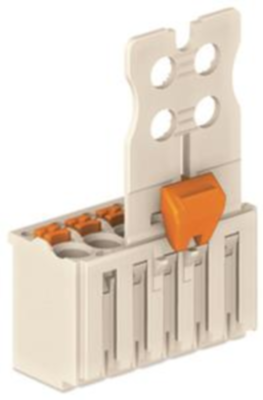

Female connector, 2091-1104/002-000, WAGO

1-conductor female connector, push-button, Push-in CAGE CLAMP, 1.5 mm², pin spacing 3.5 mm, 4-pole, gripping plate sliding connector release, 1,50 mm², light gray.

Features

  • Universal connection for all conductor types
  • Simple, push-in termination of solid and ferruled conductors
  • Easy-to-use design does not require special tools
  • Ability to wire while mated or unmated
  • Integrated locking latches prevent accidental disconnection
Technical specifications
Version socket
AWG cross-section AWG 24-14
Design straight
Contact connection push-in
Cable cross-section 0.2-1.5 mm²
Rated voltage 160 V
Rated current 10 A
Pin number 4 pole
Grid 3.5 mm
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85044083
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Pin number
Design
Cable cross-section
Version
Grid
Unit
Rated voltage
Unit
AWG cross-section
Rated current
Unit
Contact connection
Search results: 1 item in 7 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Pin number
Design
Cable cross-section
Version
Grid
Rated voltage
AWG cross-section
Rated current
Contact connection
Female connector with grip plate, 2 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1102/002-000
Female connector with grip plate, 2 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1102/002-000
Order No.:
 43P1214
Manufacturer:
 WAGO
Manufacturer SKU:
 2091-1102/002-000
Total Price: 1.89 € *
1 pcs.
1.8921 €
25 pcs.
1.7017 €
100 pcs.
1.5351 €
Available: 190 pcs.
Leadtime: 2 Weeks **
2 pole
straight
0.2-1.5 mm²
socket
3.5 mm
160 V
AWG 24-14
10 A
push-in
Female connector with grip plate, 4 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1104/002-000
Female connector with grip plate, 4 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1104/002-000
Order No.:
 43P1218
Manufacturer:
 WAGO
Manufacturer SKU:
 2091-1104/002-000
Total Price: 2.94 € *
1 pcs.
2.9393 €
10 pcs.
2.6418 €
100 pcs.
2.3800 €
Available: 183 pcs.
Leadtime: 2 Weeks **
4 pole
straight
0.2-1.5 mm²
socket
3.5 mm
160 V
AWG 24-14
10 A
push-in
Female connector with grip plate, 2 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1102
Female connector with grip plate, 2 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1102
Order No.:
 43P1212
Manufacturer:
 WAGO
Manufacturer SKU:
 2091-1102
Total Price: 1.77 € *
1 pcs.
1.7731 €
10 pcs.
1.5946 €
100 pcs.
1.4399 €
Available: 0 pcs.
Leadtime: 2 Weeks **
2 pole
straight
0.2-1.5 mm²
socket
3.5 mm
160 V
AWG 24-14
10 A
push-in
Female connector with grip plate, 6 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1106
Female connector with grip plate, 6 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1106
Order No.:
 43P1222
Manufacturer:
 WAGO
Manufacturer SKU:
 2091-1106
Total Price: 4.15 € *
50 pcs.
4.1531 €
Available: 0 pcs.
Leadtime: 6 Weeks **
6 pole
straight
0.2-1.5 mm²
socket
3.5 mm
160 V
AWG 24-14
10 A
push-in
Female connector with grip plate, 3 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1103/002-000
Female connector with grip plate, 3 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1103/002-000
Order No.:
 43P1216
Manufacturer:
 WAGO
Manufacturer SKU:
 2091-1103/002-000
Total Price: 2.51 € *
100 pcs.
2.5109 €
Available: 0 pcs.
Leadtime: On Request **
3 pole
straight
0.2-1.5 mm²
socket
3.5 mm
160 V
AWG 24-14
10 A
push-in
Female connector with grip plate, 5 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1105/002-000
Female connector with grip plate, 5 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1105/002-000
Order No.:
 43P1220
Manufacturer:
 WAGO
Manufacturer SKU:
 2091-1105/002-000
Total Price: 3.62 € *
1 pcs.
3.6176 €
10 pcs.
3.2606 €
100 pcs.
2.9393 €
Available: 0 pcs.
Leadtime: On Request **
5 pole
straight
0.2-1.5 mm²
socket
3.5 mm
160 V
AWG 24-14
10 A
push-in
Female connector with grip plate, 8 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1108/002-000
Female connector with grip plate, 8 pole, pitch 3.5 mm, 0.2-1.5 mm², AWG 24-14, straight, 10 A, 160 V, push-in, 2091-1108/002-000
Order No.:
 43P1224
Manufacturer:
 WAGO
Manufacturer SKU:
 2091-1108/002-000
Total Price: 5.53 € *
50 pcs.
5.5335 €
Available: 0 pcs.
Leadtime: On Request **
8 pole
straight
0.2-1.5 mm²
socket
3.5 mm
160 V
AWG 24-14
10 A
push-in
*incl. VAT plus shipping costs
**Subject to prior sale
