750-347 | WAGO

CANopen fieldbus coupler, 24 VDC, 750-347

Order No.: 44P5227
EAN: 4045454406820
MPN:
750-347
Series: 750

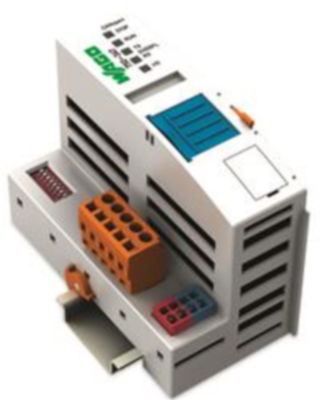

750-347 WAGO Bus coupler Image 1
750-347 WAGO Bus coupler Image 2
750-347 WAGO Bus coupler Image 3
Image may differ
Unit Price (€ / pc.)
252.8512 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
252.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
252.8512 €

Fieldbus coupler, 750-347, WAGO

The ECO fieldbus coupler is designed for applications with a low data width in the process image, then it detects all connected I/O modules and creates a local process image. The process image can be transferred via the DeviceNet fieldbus to the memory of the control system and is divided into two data zones containing the data received and the data to be sent.

The data of the analog modules is stored in the PDOs according to the order in which the modules are connected to the coupler. The bits from the digital modules are sent byte by byte and also mapped in the PDOs. If the amount of digital I/O information exceeds eight bits, the coupler automatically starts with a new byte.

Technical specifications
Version fieldbus coupler
Interfaces CANopen
Data transmission rate 1000000 mb/s
Voltage 24 VDC
Width 49.5 mm
Height 96.8 mm
Depth 71.9 mm
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
Date of RoHS guidelines 3/31/15
Substance description 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead
SVHC free No
RoHS conform Yes
