750-333/040-000 | WAGO

Profibus fieldbus coupler, 24 VDC, 750-333/040-000

Order No.: 44P5219
EAN: 4050821460138
MPN:
750-333/040-000
Series: 750

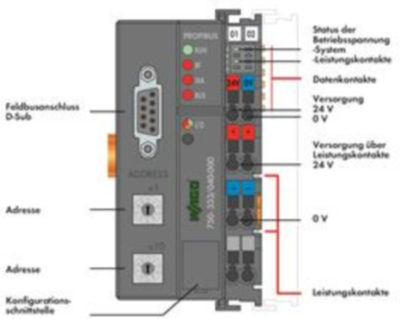

750-333/040-000 WAGO Bus coupler Image 1

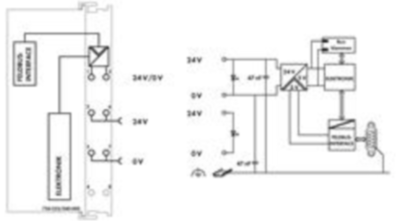

750-333/040-000 WAGO Bus coupler Image 2

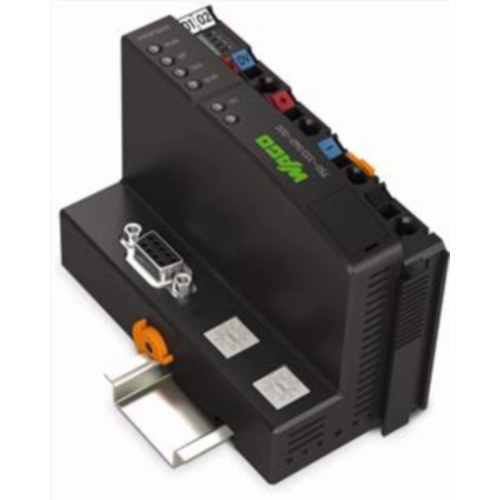

750-333/040-000 WAGO Bus coupler Image 3
Image may differ
Unit Price (€ / pc.)
535.4524 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
535.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
535.4524 €

Fieldbus coupler, 750-333/040-000, WAGO

This fieldbus coupler maps the peripheral data of all the WAGO I/O System's I/O modules on PROFIBUS DP. When initializing, the coupler determines the node's module structure and creates the process image of all inputs and outputs. Modules with a bit width smaller than eight are grouped in one byte for address space optimization.

Features

  • An extended temperature range
  • Greater immunity to impulse voltages and electromagnetic interference
  • Higher vibration and shock resistance
Technical specifications
Filter Property Value
Version fieldbus coupler
Interfaces profibus
Data transmission rate 12000000 mb/s
Voltage 24 VDC
Width 50.5 mm
Height 100 mm
Depth 71.1 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
