750-310 | WAGO
CC-Link fieldbus coupler, 24 VDC, 750-310
Unit Price (€ / pc.)
477.309 € *
Standard delivery time from the manufacturer is: 5 Weeks

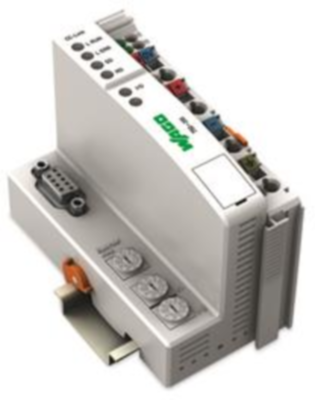

Fieldbus coupler, 750-310, WAGO
This fieldbus coupler connects the WAGO I/O System as a slave to the CC-Link fieldbus. The fieldbus coupler detects all connected I/O modules and creates a local process image. This process image may include a mixed arrangement of analog (word-by-word data transfer) and digital (bit-by-bit data transfer) modules. The process image can be transferred via the CC-Link fieldbus to the memory of the control system and is divided into two data zones containing the data received and the data to be sent.
Technical specifications
| Version | fieldbus coupler | |
| Interfaces | CC-Link | |
| Data transmission rate | 10000000 mb/s | |
| Voltage | 24 VDC | |
| Width | 50.5 mm | |
| Height | 100 mm | |
| Depth | 71.1 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| SVHC free | No |
| RoHS conform | Yes |
