750-303 | WAGO
Profibus fieldbus coupler, 24 VDC, 750-303
Unit Price (€ / pc.)
477.309 € *
Standard delivery time from the manufacturer is: 5 Weeks

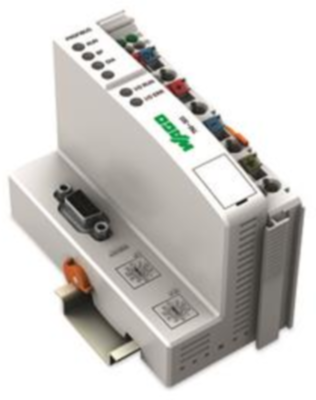

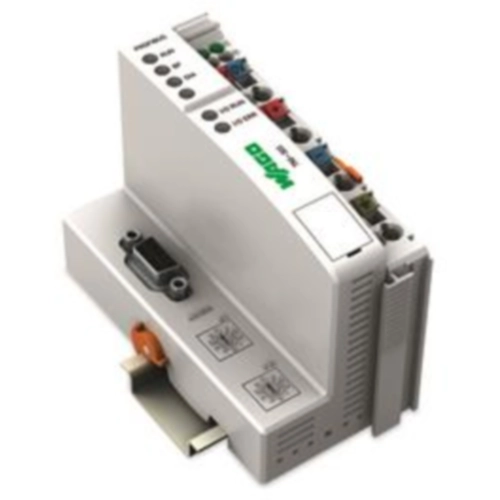

Fieldbus coupler, 750-303, WAGO
This fieldbus coupler connects the WAGO I/O System as a slave to the PROFIBUS fieldbus. The fieldbus coupler detects all connected I/O modules and creates a local process image. This process image may include a mixed arrangement of analog (word-by-word data transfer) and digital (bit-by-bit data transfer) modules. The process image can be transferred via the PROFIBUS fieldbus to the memory of the control system and is divided into two data zones containing the data received and the data to be sent.
Technical specifications
| Version | fieldbus coupler | |
| Interfaces | profibus | |
| Data transmission rate | 12000000 mb/s | |
| Voltage | 24 VDC | |
| Width | 50.5 mm | |
| Height | 100 mm | |
| Depth | 71.1 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, lead |
| SVHC free | No |
| RoHS conform | Yes |
