787-1732 | WAGO
Power supply, 24 VDC, 10 A, 240 W, 787-1732
Unit Price (€ / pc.)
185.5805 € *
Standard delivery time from the manufacturer is: 6 Weeks

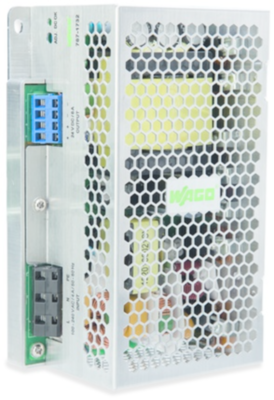

Switched-mode power supply, 787-1732, WAGO
Switched-mode power supply, Eco, 1-phase, 24 VDC output voltage, 10 A output current, DC-OK LED.
Features
- Switched-mode power supply
- Natural convection cooling when horizontally mounted
- Encapsulated for use in control cabinets
- Suitable for both parallel and series operation
- DIN-35 rail mountable in different positions
- Direct installation on mounting plate via cable grip
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 10 A | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 100-240 VAC | |
| Power | 240 W | |
| efficiency | 91 % | |
| Degree of protection (IP) | IP20 | |
| Length | 99 mm | |
| Width | 70 mm | |
| Height | 165 mm | |
| Depth | 99 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
