765-2703/200-000 | WAGO

IO-Link converter for circular connector, Outputs: 2, (W x H x D) 30 x 63 x 24 mm, 765-2703/200-000

Order No.: 45P8015
EAN: 4066966322231
MPN:
765-2703/200-000
Series: 765

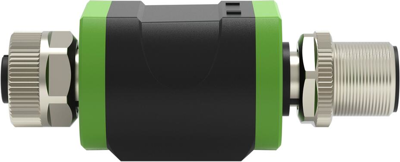

765-2703/200-000 WAGO Analog Modules Image 1

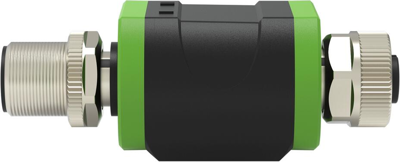

765-2703/200-000 WAGO Analog Modules Image 2

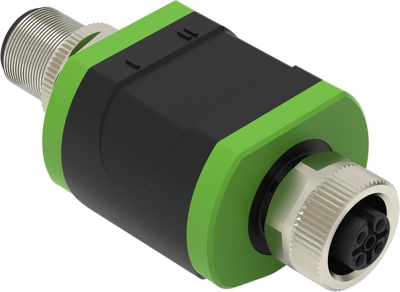

765-2703/200-000 WAGO Analog Modules Image 3

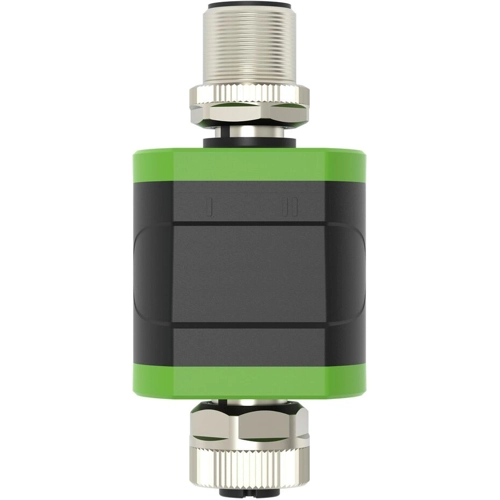

765-2703/200-000 WAGO Analog Modules Image 4
765-2703/200-000 WAGO Analog Modules Image 5
Image may differ
Unit Price (€ / pc.)
227.29 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
227.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
227.29 €

2-channel analog output, 765-2703/200-000, WAGO

This device controls a connected actuator or any other unit that has an analog input (4-20 mA). The device has two analog current inputs. The device has an IO-Link communication interface that requires an IO-Link-capable module (IO-Link master) for interoperation. The IO-Link interface allows direct access to the process and diagnostic data and enables setting of the device parameters during operation.

Technical specifications
Depth 24 mm
Number of analogue outputs 2
Width 30 mm
Height 63 mm
Version IO-Link converter
Suitable for circular connector
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
