765-2702/200-000 | WAGO

IO-Link converter for circular connector, Inputs: 2, (W x H x D) 30 x 63 x 24 mm, 765-2702/200-000

Order No.: 45P8014
EAN: 4066966322224
MPN:
765-2702/200-000
Series: 765

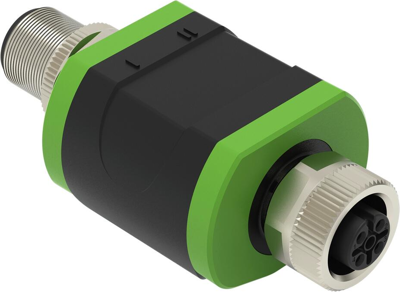

765-2702/200-000 WAGO Analog Modules Image 1

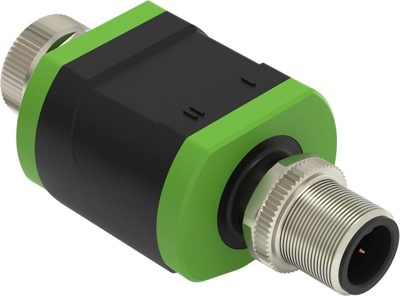

765-2702/200-000 WAGO Analog Modules Image 2

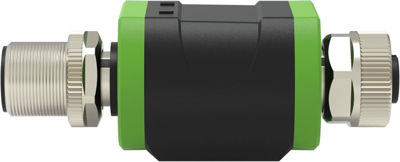

765-2702/200-000 WAGO Analog Modules Image 3

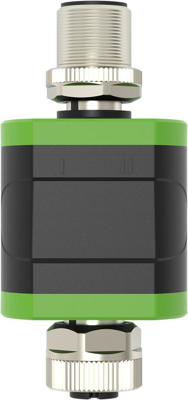

765-2702/200-000 WAGO Analog Modules Image 4

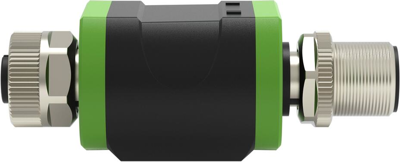

765-2702/200-000 WAGO Analog Modules Image 5
Image may differ
Unit Price (€ / pc.)
211.82 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
211.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
211.82 €

2-channel analog input, 765-2702/200-000, WAGO

The device is used for signal acquisition of a connected sensor or another device with an analog output (0-10 V). The device has two analog voltage inputs. The device has an IO-Link communication interface that requires an IO-Link-capable module (IO-Link master) for interoperation. The IO-Link interface allows direct access to the process and diagnostic data and enables setting of the device parameters during operation.

Technical specifications
Depth 24 mm
Width 30 mm
Height 63 mm
Version IO-Link converter
Suitable for circular connector
Number of analogue inputs 2
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
