750-564 | WAGO

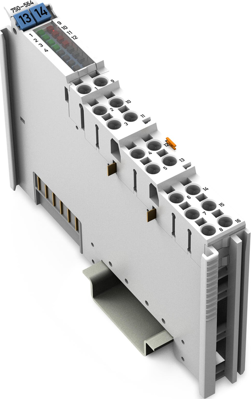

Analog module for series 750, Outputs: 4, (W x H x D) 12 x 100 x 69 mm, 750-564
Unit Price (€ / pc.)
404.60 € *
Standard delivery time from the manufacturer is: 5 Weeks
4-channel analog output, 750-564, WAGO
The analog output module provides a variety of standardized signals for voltage and current. The output signal can be parameterized channel by channel. The output signal is electrically isolated and transmitted with a resolution of 16 bits. Both the internal system and field side supply power the module. Wire break, overload and insufficient field supply, are diagnosed and displayed. The module is protected against wrong wiring (feedback).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 12 mm | |
| Depth | 69 mm | |
| Suitable for | series 750 | |
| Number of analogue outputs | 4 | |
| Version | analog output module | |
| Assembly | DIN rail | |
| Height | 100 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
