750-559 | WAGO

Analog module for series 750, Outputs: 4, (W x H x D) 12 x 100 x 69.8 mm, 750-559

Order No.: 73F2046
EAN: 4045454490447
MPN:
750-559
Series: 750

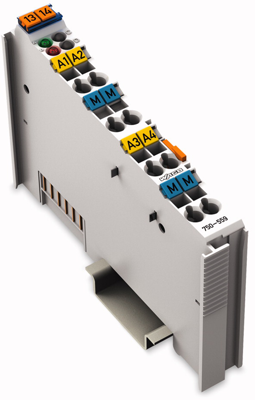

750-559 WAGO Analog Modules
Image may differ
Unit Price (€ / pc.)
242.0341 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
242.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
242.0341 €

Analog and digital output terminals, type Wago 750.

For TS 35 with CAGE CLAMP terminals; Degree of protection: IP 20. Operating temperatures: 0 to +55 °C. Width: 12 mm.

4-channel analog output terminals, type 750-559.

Number of outputs: 4. Current consumption: 125 mA. Voltage supply: via DC/DC system voltage. Signal voltage: 0 to 10 V. Resolution: 12 bits. Conversion time: 10 ms. Transient time: 100 ms.

Type: 750–559, 4–channel output terminal

Technical specifications
Filter Property Value
Depth 69.8 mm
Assembly DIN rail
Number of analogue outputs 4
Width 12 mm
Height 100 mm
Version analog output module
Suitable for series 750
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description boron trioxide, lead monoxide, lead
SVHC free No
RoHS conform Yes
