750-557 | WAGO

Analog module for series 750, Outputs: 4, (W x H x D) 12 x 100 x 69.8 mm, 750-557

Order No.: 45P8011
EAN: 4045454475437
MPN:
750-557
Series: 750

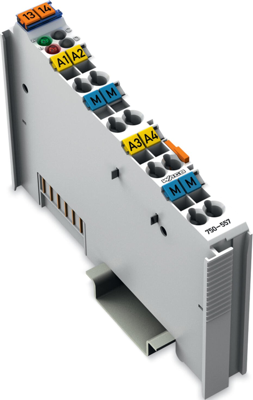

750-557 WAGO Analog Modules Image 1
750-557 WAGO Analog Modules Image 2
Image may differ
Unit Price (€ / pc.)
332.01 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
332.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
332.01 €

4-channel analog output, 750-557, WAGO

This analog output module generates standard ±10 V signals. The output signal is electrically isolated and transmitted with a resolution of 12 bits. The internal system supply powers the module. The module's output channels have a common ground potential.

Technical specifications
Filter Property Value
Depth 69.8 mm
Assembly DIN rail
Number of analogue outputs 4
Width 12 mm
Height 100 mm
Version analog output module
Suitable for series 750
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
