750-489 | WAGO
Analog module for series 750, Inputs: 4, (W x H x D) 24 x 100 x 67.8 mm, 750-489
Unit Price (€ / pc.)
1,035.30 € *
Standard delivery time from the manufacturer is: 5 Weeks
4-channel analog input, 750-489, WAGO

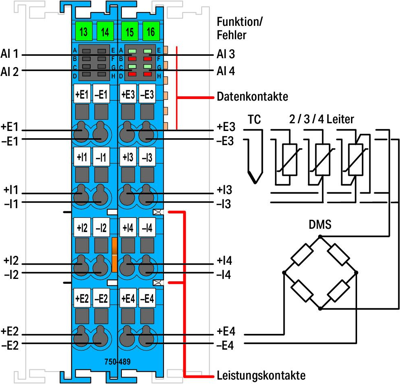

This analog input module directly connects resistance thermometers, thermocouples, millivolt sensors, resistors, resistor bridges (strain gauges), potentiometers and PTC thermistors operating in the hazardous environments of Zones 0 and 1. Cold junction compensation for the respective channel is incorporated into the module. The 24 V supply is derived from the module's power jumper contacts. The shield directly connects to the DIN-rail.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 24 mm | |
| Depth | 67.8 mm | |
| Suitable for | series 750 | |
| Number of analogue inputs | 4 | |
| Version | analog input module | |
| Assembly | DIN rail | |
| Height | 100 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
