750-483 | WAGO

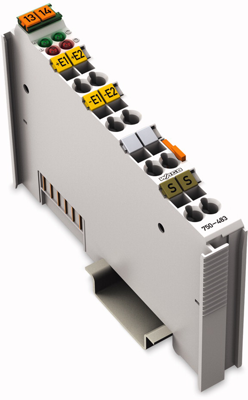

Analog input module for series 750, Inputs: 2, (W x H x D) 12 x 100 x 69.8 mm, 750-483
Unit Price (€ / pc.)
325.8696 € *
Standard delivery time from the manufacturer is: 5 Weeks
Analog and digital input terminals, type Wago 750.
For TS 35 CAGE CLAMP connection; Degree of protection: IP 20. Operating temperatures: 0 to +55 °C. Width: 12 mm.
2-channel analog input terminals, type 750-483.
Number of inputs: 2 (electrically isolated). Current consumption: 100 mA. Voltage supply: via DC/DC system voltage. Signal voltage: 0 to 30 V. Internal resistance: 1000 kohm. Resolution: 14 Bit. Crosstalk attenuation: 80 dB. Sampling rate: 1.0 ms. Sampling delay: (module) 1.0 ms, (channel/channel) 1.0 µs. Sampling period: 5.0 µs.
Type: 750-483, 2-channel input terminal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 69.8 mm | |
| Height | 100 mm | |
| Assembly | DIN rail | |
| Number of analogue inputs | 2 | |
| Width | 12 mm | |
| Suitable for | series 750 | |
| Version | analog input module |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
