750-471/040-000 | WAGO
Analog module for series 750, Inputs: 4, (W x H x D) 12 x 100 x 67.8 mm, 750-471/040-000
Unit Price (€ / pc.)
592.62 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

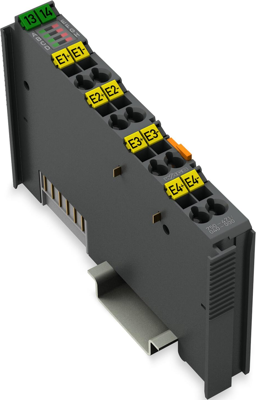

4-channel analog input, 750-471/040-000, WAGO

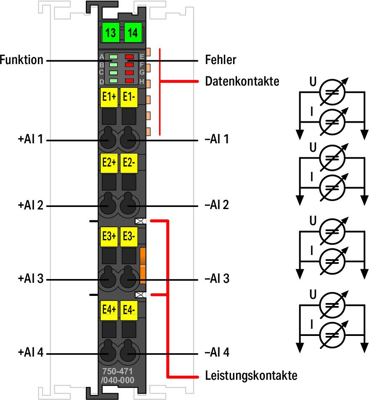

This analog input module processes both voltage and current differential signals. A wire break, overload or out-of-measurement range are indicated channel by channel via red LED depending on the set measurement range. The device is ideal for operation in extreme environments thanks to: An extended temperature range, greater immunity to impulse voltages and electromagnetic interference and higher vibration and shock resistance.
Technical specifications
| Depth | 67.8 mm | |
| Assembly | DIN rail | |
| Width | 12 mm | |
| Height | 100 mm | |
| Version | analog input module | |
| Suitable for | series 750 | |
| Number of analogue inputs | 4 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
