CUB5PB0B | Wachendorff

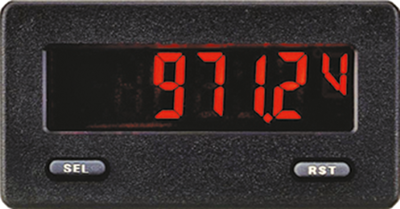

Process display, CUB5PB0B, red/green LCD
Order No.: 19K962
EAN: 4099891455644
MPN:
CUB5PB0B
Unit Price (€ / pc.)
238.00 € *
Standard delivery time from the manufacturer is: 2 Weeks
programmable input. Scalable, with MIN/MAX memory. Programming by means of front panel keys. Optional upgrade with up to 2 switching outputs
Input: 0 to 10 VDC, 0 to 20/50 mA, adjustable
Display: 12 mm standard LCD or red/green (selectable) backlight
Power supply: 9.0 to 28 VDC
Housing: plastic
Degree of protection: IP 65 at front
Ambient temperatures: - 35 to +35/75 °C (depends on display intensity)
Dimensions: W 75, H 39, D 44 mm
Control panel cutout: 68 x 33 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency measurement | No | |
| Height of cut-out | 33 mm | |
| Max. current | 20 mA | |
| Width of cut-out | 68 mm | |
| Assembly | built-in mounting | |
| Degree of protection (IP) | IP65 | |
| Installation depth | 44 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 90318080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
