PAXLA00B | Wachendorff
Digital display, PAXLA
Product by Wachendorff at Bürklin Elektronik

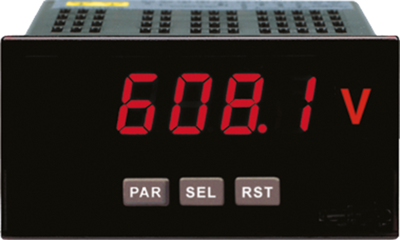

Industrial standard digital current and voltage displays, type Wachendorff PAXLA.
Programmable input for 0 to 200 VDC and 0 to 200 mA DC. Scalable, MIN/MAX memory, 2 relay outputs. Programming by means of front panel keys; Data backup: EEPROM, minimum retention time 10 years. Display: 5-digit red LED, 14.2 mm height, dimmable. Power supply: 50 to 250 VAC, 50/60 Hz or 21.6 to 250 VDC. Degree of protection: IP 65 at the front. Ambient temperatures: 0 to +50 °C. Dimensions: W 96, H 50, D 104 mm. Front-panel cutout: 92 x 45 mm. Supplied with: fastening material, seal, operating instructions.
Type: PAXLA, digital display
| AC or DC measurement possible | AC and DC | |
| Connection | screw connection | |
| Width | 96.5 mm | |
| Width of cut-out | 91.4 mm | |
| Installation depth | 104.1 mm | |
| Height | 49.5 mm | |
| Height of cut-out | 44.5 mm | |
| Max. current | 200 A | |
| Min. current | 0 A | |
| Assembly | front panel mounting |
| Country of origin | US |
| Customs tariff number | 90318080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
