516-1-40-TR | W+P PRODUCTS

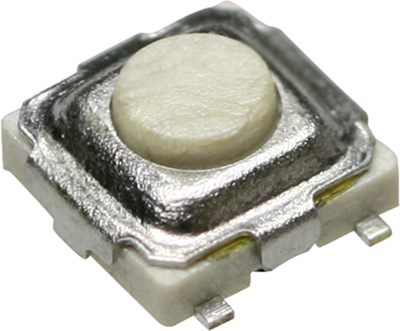

Name: Short-stroke pushbutton, 1 Form A (N/O), 50 mA /12 VDC, unlit , actuator (silver, L 0.4 mm), 2.45 N, SMD, 516-1-40-TR
Brand: W+P PRODUCTS
SKU: 13G4400
Availability: InStock

Short-stroke pushbutton, 1 Form A (N/O), 50 mA /12 VDC, unlit , actuator (silver, L 0.4 mm), 2.45 N, SMD, 516-1-40-TR

Order No.: 13G4400

EAN: 4099889206326

MPN:

516-1-40-TR

Series: 516

Image may differ

Key Specification:

Latching switching function 1 Form A (N/O)

Breaking capacity 50 mA /12 VDC

illuminated No

Actuator colour silver

Download Datasheet Technical specifications

Discontinued

Unit Price (€ / pc.)

0.4165 € *

Available: 1,530 pcs.

Total Price:

4.17 € *

Price list

Quantity

Price per unit*

10 pcs.

0.4165 €

100 pcs.

0.3570 €

500 pcs.

0.3023 €

1000 pcs.

0.2511 €

4000 pcs.

0.2011 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

SMD-Einzeltaster liegend 3,3 x 3,3 mm und Bauhöhe 1,5 mm Typ W+P PRODUCTS 516.

Kontaktbelastbarkeit: 12 VDC/50 mA, Spannungsfestigkeit: 250 VAC, Durchgangswiderstand (Neuzustand): < 100 mOhm, Isolationswiderstand (Neuzustand): > 100 MOhm, Betätigungskraft: 250 g (±50), Kontaktmaterial: Messing, Kontaktoberfläche: versilbert, Material Gehäuse: Thermoplast/Stahl, UL 94 HB, Temperaturbereich: –20 bis +70 °C. Tabellenangaben: Typ, Betätigungskraft.

Type: 516-1-40-TR, SMD-Einzeltaster

Technical specifications

Filter	Property	Value
	Latching switching function	1 Form A (N/O)
	Breaking capacity	50 mA /12 VDC
	illuminated	No
	Actuator colour	silver
	Contact material	silver-plated
	Connection	SMD
	actuating force	2.45 N
	actuator length	0.4 mm
	Length	3.3 mm
	Width	3.3 mm
	Height	1.5 mm
