105-09-1-3-1 | W+P PRODUCTS

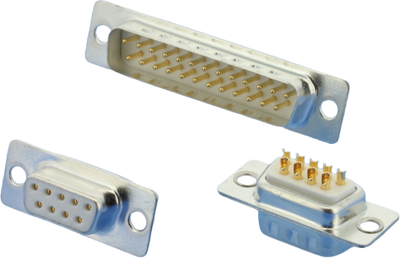

D-Sub plug, 9 pole, standard, equipped, solder cup, 105-09-1-3-1
Order No.: 74F660
EAN: 4099889809800
MPN:
105-09-1-3-1
Unit Price (€ / pc.)
1.1781 € *
Available: 10 pcs.
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1781 €
10 pcs.
1.0948 €
50 pcs.
1.0115 €
100 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale
Male Header, 105-09-1-3-1, W+P PRODUCTS
Stamped contacts, quality class 3 (> 50 mating cycles).
Technical Data
- Assembly: Cable connection
- Pin number: 9-pole
- Pole image: Standard
- Additional parts: Fully equipped
- Contact connection: Solder cup
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | standard | |
| Attachment (rear panel) | through hole | |
| Grid | 2.77 mm | |
| Contact connection | solder cup | |
| Pin number | 9 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Performance level | 3 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
