51588-00-66-19 | Volz
Electronics adhesive tape, 19 x 0.056 mm, polyester, transparent, 66 m, 51588-00-66-19
Unit Price (€ / pc.)
11.8405 € *
Available: 13 pcs.
Total Price:
11.84 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8405 €
8 pcs.
11.2455 €
16 pcs.
10.6862 €
32 pcs.
10.1626 €
*incl. VAT plus shipping costs
Subject to prior sale

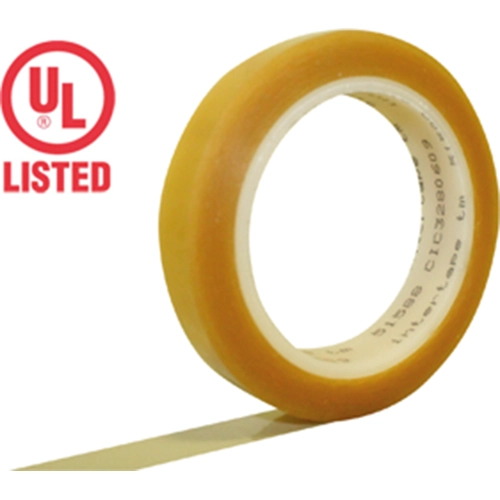

Electricians' adhesive tapes transparent, type Volz IPG™ 51588.
Good resistance against chemicals, solvents and dampness, good electrical insulation properties; Substrate: polyester foil. Adhesive compound: rubber, hot-curing. Maximum tensile strength: 110 N/25 mm. Substrate thickness: 25 µm (1.0 mil). Total thickness: 56 µm (2.2 mil). Elongation at fracture: 100 %. Adhesive strength (steel): 13.7 N/25 mm. Dielectric strength: 5000 V. Insulation class: B, 130 °C. Surface resistance: 10^6 ohm. Inflammability class: BU1. Certifications: UL.
Type: 51588-00-66-19, 19 mm, transparent, 66 m roll
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | electronics adhesive tape | |
| Length | 66 m | |
| max. operating temperature | 130 °C | |
| Thickness | 0.056 mm | |
| Material | polyester | |
| Colour | transparent | |
| Width | 19 mm | |
| Adhesive cement | natural rubber |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 39191019 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
