3831N.67 | Vogt
Uninsulated flat plug sleeve, 6.3 x 0.8 mm, 0.5 to 1.0 mm², AWG 20 to 18, brass, tin-plated, 3831N.67
Order No.: 05F521
EAN: 4099889618426
MPN:
3831N.67
Unit Price (€ / pc.)
0.1119 € *
Available: 12,480 pcs.
Total Price:
5.59 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1119 €
100 pcs.
0.0976 €
500 pcs.
0.0857 €
1000 pcs.
0.0750 €
5000 pcs.
0.0690 €
*incl. VAT plus shipping costs
Subject to prior sale

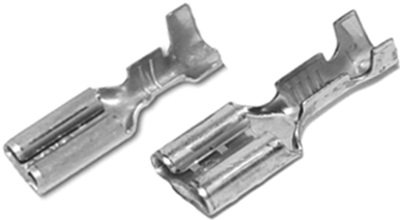

Receptacle, 3831N.67, Vogt
Receptacle, not insulated, to DIN 46247 part 3, made of tinned brass.

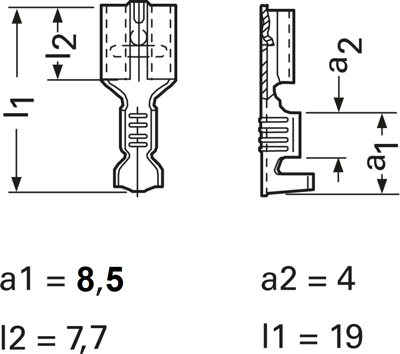

Technical attributes (type, mating width x mating thickness, for conductor cross-section): 3831n.67, 6.3 x 0.8 mm, 0.5 to 1.0 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 18 | |
| Length | 19 mm | |
| Nominal size according to DIN | DIN 46247 | |
| Connection | crimp connection | |
| Suitable for | 6.3 x 0.8 mm | |
| Cable cross-section | 0.5 to 1.0 mm² | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 85389091 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
