3805.67 | Vogt

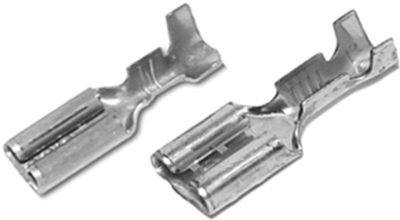

Uninsulated flat plug sleeve, 4.8 x 0.8 mm, 1.5 to 2.5 mm², AWG 16 to 14, brass, tin-plated, 3805.67
Order No.: 05F512
EAN: 4099889618396
MPN:
3805.67
Unit Price (€ / pc.)
0.0976 € *
Available: 1,790 pcs.
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
50 pcs.
0.0976 €
100 pcs.
0.0881 €
500 pcs.
0.0785 €
1000 pcs.
0.0702 €
5000 pcs.
0.0619 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 3805.67, Vogt
Receptacle without Insulation, to DIN 46247 part 2, made of tinned brass.
Mating width x mating thickness: 4.8 x 0.8 mm
For conductor cross-section: 1.5 to 2.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Nominal size according to DIN | DIN 46247 | |
| Material | brass, tin-plated | |
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| Cable cross-section | 1.5 to 2.5 mm² | |
| Length | 15.6 mm | |
| Isolated | No | |
| Suitable for | 4.8 x 0.8 mm | |
| AWG cross-section | AWG 16 to 14 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
