380208.67 | Vogt

Name: Uninsulated flat plug sleeve, 4.8 x 0.8 mm, 0.5 to 1.0 mm², AWG 22 to 18, Brass, tin-plated, 380208.67
Brand: Vogt
SKU: 07F334
Price: 0.18 EUR
Availability: InStock

Uninsulated flat plug sleeve, 4.8 x 0.8 mm, 0.5 to 1.0 mm², AWG 22 to 18, Brass, tin-plated, 380208.67

Order No.: 07F334

MPN:

380208.67

EAN: 4099889618822

Images may differ

Key Specification:

Version flat plug sleeve

Suitable for 4.8 x 0.8 mm

Material Brass, tin-plated

Isolated No

Technical specifications Download Datasheet

Unit Price (€ / pc.)

0.1809 € *

Available: 805 pcs.

Leadtime: 2 Weeks **

Total Price:

4.52 € *

Quantity

Price per unit*

25 pcs.

0.1809 €

100 pcs.

0.1571 €

500 pcs.

0.1380 €

1000 pcs.

0.1214 €

5000 pcs.

0.1119 €

*incl. VAT plus shipping costs

**Subject to prior sale

Add to comparison list Print

Description

Receptacle, angled, not insulated, type Vogt 380208.67.

Made of tinned brass; Conductor cross-section: 0.5 to 1.0 mm².

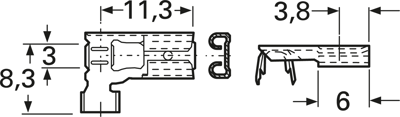

Technical attributes (type, mating width x mating thickness): 380208.67, 4.8 x 0.8 mm

Technical specifications

	Connection	crimp connection
	Version	flat plug sleeve
	AWG cross-section	AWG 22 to 18
	Suitable for	4.8 x 0.8 mm
	Isolated	No
	Length	11.3 mm
	Cable cross-section	0.5 to 1.0 mm²
	Material	Brass, tin-plated
