3800.60 | Vogt
Uninsulated flat plug sleeve, 4.8 x 0.5 mm, 0.5 to 1.0 mm², AWG 20 to 18, brass, 3800.60
Order No.: 05F440
EAN: 4099889618174
MPN:
3800.60
Unit Price (€ / pc.)
0.1071 € *
Available: 191 pcs.
Next delivery: 1,000 pcs. on 2025-08-21
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1071 €
100 pcs.
0.0976 €
500 pcs.
0.0881 €
1000 pcs.
0.0738 €
5000 pcs.
0.0643 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat plug sleeve, 3800.60, Vogt

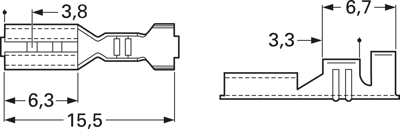

Receptacle, not insulated, made of bright brass; Mating width: 4.8 mm. Mating thickness: 0.5 mm. Cross-section: 0.5 to 1.0 mm².
Type: 3800.60, receptacle.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 18 | |
| Nominal size according to DIN | DIN 46247 | |
| Isolated | No | |
| Version | flat plug sleeve | |
| Material | brass | |
| Connection | crimp connection | |
| Cable cross-section | 0.5 to 1.0 mm² | |
| Suitable for | 4.8 x 0.5 mm | |
| Length | 15.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
