1361.61 | Vogt
Uninsulated flat plug sleeve, 3.8 x 0.25 mm, 0.3 to 0.5 mm², AWG 24 to 20, brass, tin-plated, 1361.61
Order No.: 07F860
EAN: 4099889618938
MPN:
1361.61
Unit Price (€ / pc.)
0.1880 € *
Available: 713 pcs.
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1880 €
100 pcs.
0.1666 €
500 pcs.
0.1416 €
1000 pcs.
0.1238 €
5000 pcs.
0.1047 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 1361.61, Vogt
For 1.3 mm pin contacts, made of brass, crimp connection; Rated cross-section: 0.3 to 0.5 mm².

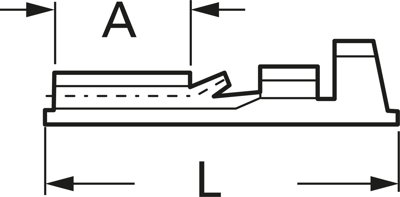

Technical attributes (type, surface material, dimensions): 1361.61, silver-plated, L 13.5 mm, A 5.5 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 to 20 | |
| Isolated | No | |
| Connection | crimp connection | |
| Suitable for | 3.8 x 0.25 mm | |
| Cable cross-section | 0.3 to 0.5 mm² | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Length | 13.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
