1053.68 | Vogt
Fuse holder clip, 5 x 20 mm, PCB mounting, 1053.68
Order No.: 46G6084
EAN: 4099889127058
MPN:
1053.68
Unit Price (€ / pc.)
0.4641 € *
Available: 59 pcs.
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.3320 €
100 pcs.
0.2844 €
500 pcs.
0.2475 €
1000 pcs.
0.2237 €
*incl. VAT plus shipping costs
Subject to prior sale

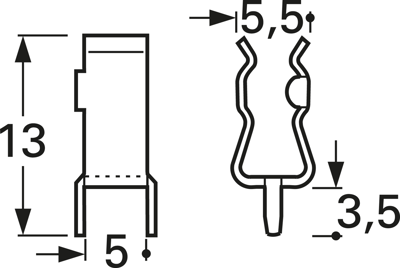

Clips for 5 x 20 mm G fuses, type Vogt 1053.68.
For PCB connection; Terminals: longitudinal. Material: pure tin-plated brass. Note: two clips are required per fuse holder (available on separate order).
Type: 1053.68, clip
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of mounting | PCB mounting | |
| Installation diameter | 1.3 mm | |
| For Fuse | 5 x 20 mm | |
| Version | open | |
| Connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
