3910 | Vogt
Faston plug, 6.3 x 0.8 mm, L 21.5 mm, insulated, straight, red, 0.5-1.0 mm², AWG 20-18, 3910
Order No.: 05F471
EAN: 4099889611779
MPN:
3910
Unit Price (€ / pc.)
0.1404 € *
Available: 250 pcs.
Next delivery: 500 pcs. on 2025-12-17
Total Price:
1.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1404 €
100 pcs.
0.1285 €
250 pcs.
0.1166 €
500 pcs.
0.1107 €
1000 pcs.
0.1047 €
*incl. VAT plus shipping costs
Subject to prior sale
Faston plug, 3910, Vogt

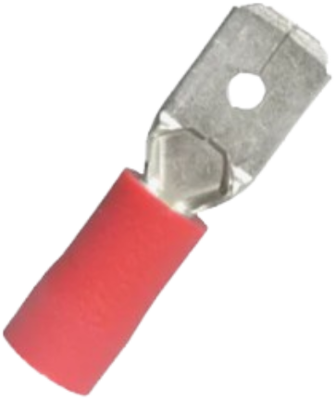

This partially insulated flat blade terminal is an electrical contact element made of sheet metal and is designed with a support sleeve in the crimping area.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | faston plug | |
| Isolated | Yes | |
| Cable cross-section | 0.5-1.0 mm² | |
| Insulation colour | red | |

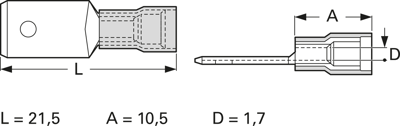

| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Length | 21.5 mm | |
| Design | straight | |
| Nominal size according to DIN | DIN 46245 | |
| Connection | crimp connection | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 20-18 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 85369001 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
