3876C.67 | Vogt
Faston plug, 6.3 x 0.8 mm, L 10.7 mm, uninsulated, angled, 3876C.67
Order No.: 05F370
EAN: 4099889611700
MPN:
3876C.67
Unit Price (€ / pc.)
0.1940 € *
Available: 4,065 pcs.
Next delivery: 10,000 pcs. on 2025-12-10
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1940 €
100 pcs.
0.1785 €
500 pcs.
0.1642 €
1000 pcs.
0.1535 €
5000 pcs.
0.1440 €
*incl. VAT plus shipping costs
Subject to prior sale
Faston plug, 3876C.67, Vogt

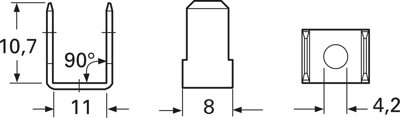

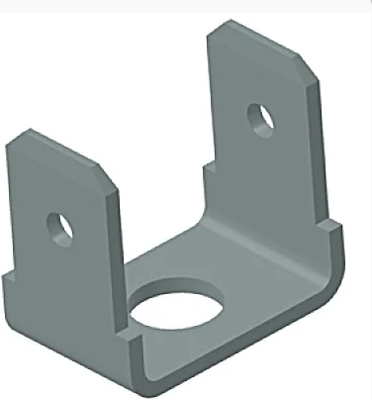

The uninsulated flat terminal in size 6.3 mm with fixing hole and latching hole, can be used as a single part or in combination with a matching receptacle.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Angulation | 90° | |
| Length | 10.7 mm | |
| Nominal size according to DIN | DIN 46342 | |
| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Design | angled | |
| Connection | screw connection | |
| Material | brass, tin-plated | |
| Version | faston plug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 500 pieces |
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
