3875A.67 | Vogt

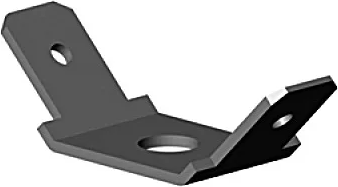

Flat plug distributor, 1 x 2 contacts, 6.3 x 0.8 mm, L 10 mm, uninsulated, angled, 3875A.67
Order No.: 05F330
EAN: 4099889611670
MPN:
3875A.67
Unit Price (€ / pc.)
0.2832 € *
Next delivery: 10,000 pcs. on 2025-11-19
Total Price:
2.83 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2832 €
100 pcs.
0.2499 €
500 pcs.
0.2273 €
1000 pcs.
0.2094 €
5000 pcs.
0.1928 €
*incl. VAT plus shipping costs
Subject to prior sale
Flat plug distributor, 3875A.67, Vogt
The uninsulated flat terminal in size 6.3 mm with fixing hole and latching hole, can be used as a single part or in combination with a matching receptacle.

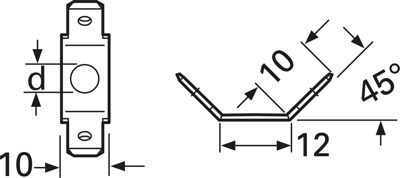

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug distributor, 1 x 2 contacts | |
| Length | 10 mm | |
| Nominal size according to DIN | DIN 46342 | |
| Connection | screw connection | |
| Design | angled | |
| Material | brass, tin-plated | |
| Angulation | 45° | |
| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Bag with 500 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
