3866G.68 | Vogt

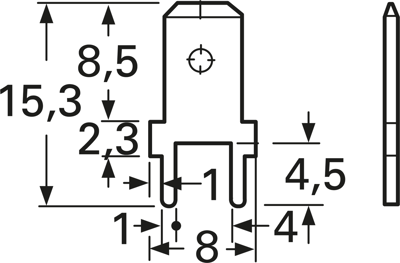

Faston plug, 6.3 x 0.8 mm, L 15.3 mm, uninsulated, straight, 3866G.68
Order No.: 05F268
EAN: 4099889611502
MPN:
3866G.68
Unit Price (€ / pc.)
0.1023 € *
Available: 20,000 pcs.
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1023 €
100 pcs.
0.0904 €
500 pcs.
0.0833 €
1000 pcs.
0.0750 €
5000 pcs.
0.0690 €
*incl. VAT plus shipping costs
Subject to prior sale
Faston plug, 3866G.68, Vogt
This THT flat receptacle is an electromechanical components commonly used in PCB assembly. THT flat receptacle generally have two pins that are inserted through a hole in the PCB and soldered.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, tin-plated | |
| Design | straight | |
| Isolated | No | |
| Length | 15.3 mm | |
| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Nominal size according to DIN | DIN 46342 | |
| Connection | solder connection | |
| Version | faston plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
