3861.67 | Vogt
Faston plug, 6.3 x 0.8 mm, L 10.5 mm, uninsulated, angled, 3861.67
Order No.: 05F130
EAN: 4099889611205
MPN:
3861.67
Unit Price (€ / pc.)
0.1083 € *
Available: 7,656 pcs.
Total Price:
5.41 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1083 €
100 pcs.
0.1000 €
500 pcs.
0.0940 €
1000 pcs.
0.0893 €
5000 pcs.
0.0845 €
*incl. VAT plus shipping costs
Subject to prior sale

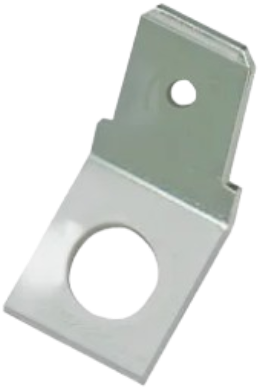

Faston plug, 3861.67, Vogt
The uninsulated flat terminal in size 6.3 mm with fixing hole and latching hole, can be used as a single part or in combination with a matching receptacle.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | faston plug | |
| Design | angled | |
| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Length | 10.5 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Connection | screw connection | |
| Nominal size according to DIN | DIN 46342 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
