381408.67 | Vogt
Faston plug, 4.8 x 0.8 mm, L 17.5 mm, uninsulated, straight, 381408.67
Order No.: 05F160
EAN: 4099889611267
MPN:
381408.67
Unit Price (€ / pc.)
0.1464 € *
Available: 495 pcs.
Next delivery: 2,000 pcs. on 2025-11-19
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1464 €
100 pcs.
0.1261 €
500 pcs.
0.1131 €
1000 pcs.
0.0976 €
5000 pcs.
0.0904 €
*incl. VAT plus shipping costs
Subject to prior sale

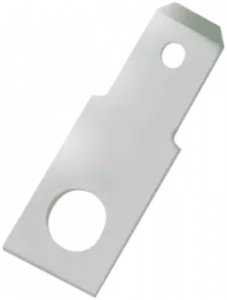

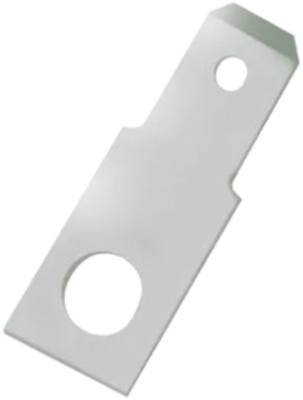

Faston plug, 381408.67, Vogt
The uninsulated flat terminal in size 4.8 mm with fixing hole and latching hole, can be used as a single part or in combination with a matching receptacle.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Plug width x plug thickness | 4.8 x 0.8 mm | |
| Isolated | No | |
| Connection | screw connection | |
| Length | 17.5 mm | |
| Version | faston plug | |
| Material | brass, tin-plated | |
| Design | straight | |
| Nominal size according to DIN | DIN 46342 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | CH |
| Original Packaging | Bag with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
