3785A08.68 | Vogt
Faston plug, 2.8 x 0.8 mm, L 13 mm, uninsulated, straight, 3785A08.68
Order No.: 05F2172
EAN: 4099889611403
MPN:
3785A08.68
Unit Price (€ / pc.)
0.0714 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
100 pcs.
0.0714 €
500 pcs.
0.0583 €
1000 pcs.
0.0536 €
5000 pcs.
0.0500 €
10000 pcs.
0.0464 €
*incl. VAT plus shipping costs
Subject to prior sale

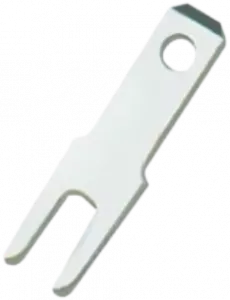

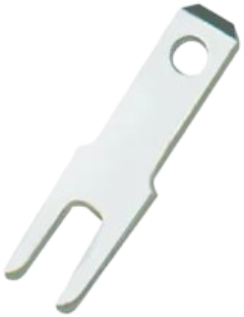

Faston plug, 3785A08.68, Vogt
This THT flat receptacle is an electromechanical components commonly used in PCB assembly. THT flat receptacle generally have two pins that are inserted through a hole in the PCB and soldered.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Nominal size according to DIN | DIN 46342 | |
| Length | 13 mm | |
| Design | straight | |
| Material | brass, tin-plated | |
| Version | faston plug | |
| Isolated | No | |

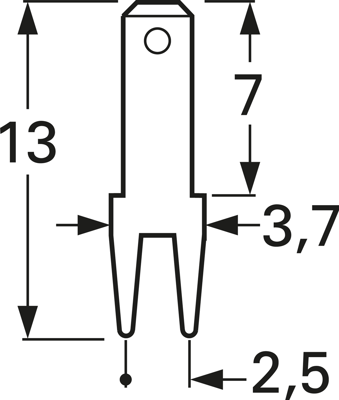

| Plug width x plug thickness | 2.8 x 0.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
