3775A08.68 | Vogt
Faston plug, 2.8 x 0.8 mm, L 12.2 mm, uninsulated, straight, 3775A08.68
Order No.: 05F144
EAN: 4099889611236
MPN:
3775A08.68
Unit Price (€ / pc.)
0.0643 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0643 €
500 pcs.
0.0536 €
2000 pcs.
0.0464 €
6000 pcs.
0.0417 €
10000 pcs.
0.0345 €
*incl. VAT plus shipping costs
Subject to prior sale
Faston plug, 3775A08.68, Vogt
This THT flat receptacle is an electromechanical components commonly used in PCB assembly. THT flat receptacle generally have two pins that are inserted through a hole in the PCB and soldered.

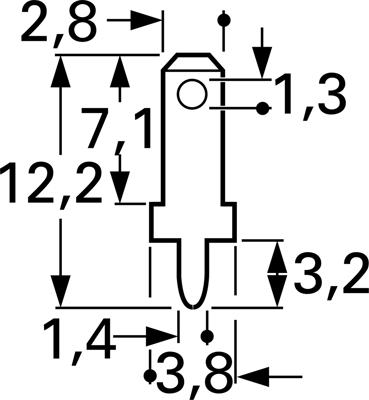

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | faston plug | |
| Design | straight | |
| Plug width x plug thickness | 2.8 x 0.8 mm | |
| Length | 12.2 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Connection | solder connection | |
| Nominal size according to DIN | DIN 46342 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 2,000 pieces |
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
