3770.67 | Vogt
Faston plug, 2.8 x 0.8 mm, L 13 mm, uninsulated, straight, 3770.67
Order No.: 05F155
EAN: 4099889611243
MPN:
3770.67
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1309 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1309 €
100 pcs.
0.1095 €
500 pcs.
0.0964 €
1000 pcs.
0.0857 €
5000 pcs.
0.0750 €
*incl. VAT plus shipping costs
Subject to prior sale

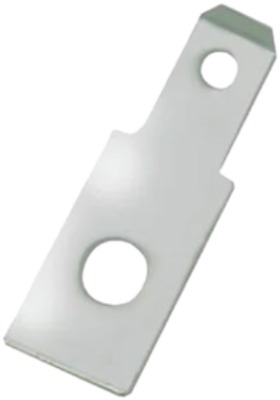

Faston plug, 3770.67, Vogt
The uninsulated flat terminal in size 2.8 mm with fixing hole and latching hole, can be used as a single part or in combination with a matching receptacle.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | faston plug | |
| Design | straight | |
| Plug width x plug thickness | 2.8 x 0.8 mm | |
| Length | 13 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Connection | screw connection | |
| Nominal size according to DIN | DIN 46342 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 1,000 pieces |
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
