3740L | Vogt
Uninsulated pin cable lug, 0.5-1.0 mm², AWG 22 to 18, 1.9 mm, metal, 3740L
Order No.: 07F712
EAN: 4099889588026
MPN:
3740L
Unit Price (€ / pc.)
0.0893 € *
Available: 300 pcs.
Total Price:
0.89 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0893 €
100 pcs.
0.0809 €
500 pcs.
0.0726 €
1000 pcs.
0.0631 €
*incl. VAT plus shipping costs
Subject to prior sale

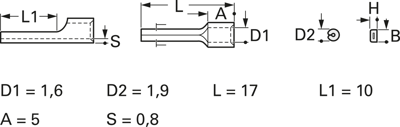

Pin cable lugs, without insulation, type Vogt 37.
Solder-free, made of tinned electrolytic copper. Compliant with DIN 46230
For rated cross-section 0.5 to 1.0 mm², type 3740L.
With round pin
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin cable lug | |
| max. operating temperature | 125 °C | |
| Isolated | No | |
| Cable cross-section | 0.5-1.0 mm² | |
| Nominal size according to DIN | DIN 46230 | |
| Colour | metal | |
| Material | electrolytic copper | |
| Pin diameter | 1.9 mm | |
| AWG cross-section | AWG 22 to 18 |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 2,000 pieces |
| Customs tariff number | 85389099 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
