3655A4 | Vogt

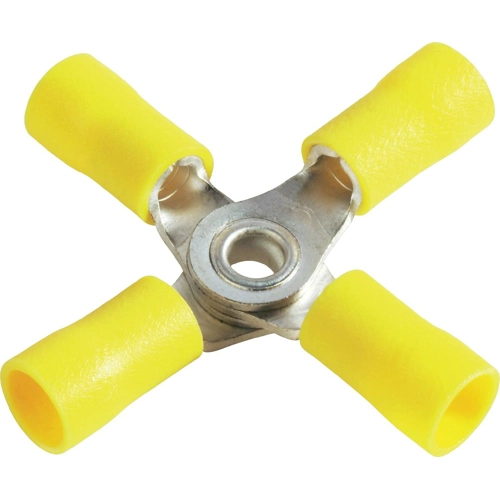

Insulated 4-fold cable lug, 4.0-6.0 mm², AWG 12 to 10, 4 mm, M4, yellow, 3655A4
Order No.: 07F780
EAN: 4099889588255
MPN:
3655A4
Unit Price (€ / pc.)
0.8925 € *
Standard delivery time from the manufacturer is: On Request
Cable lugs, 4-wire, insulated, type Vogt 36.
Made of tinned electrolytic copper.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow | |
| Hole diameter | 4 mm | |
| Cable cross-section | 4.0-6.0 mm² | |
| Version | 4-fold cable lug | |
| Isolated | Yes | |
| Thread size | M4 | |
| max. operating temperature | 75 °C | |
| Material Insulation | PVC | |
| AWG cross-section | AWG 12 to 10 | |
| Material | electrolytic copper |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
