3652A | Vogt
Insulated ring cable lug, 4.0-6.0 mm², AWG 12 to 10, 4.3 mm, M4, yellow, 3652A
Order No.: 07F9622
EAN: 4099889588385
MPN:
3652A
Unit Price (€ / pc.)
0.5236 € *
Available: 190 pcs.
Next delivery: 250 pcs. on 2025-11-19
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5236 €
100 pcs.
0.4522 €
250 pcs.
0.4046 €
500 pcs.
0.3451 €
1000 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lugs, insulated, type Vogt 3.
Made of tinned electrolytic copper, with crimp connection
Rated cross-section 4.0 to 6.0 mm².

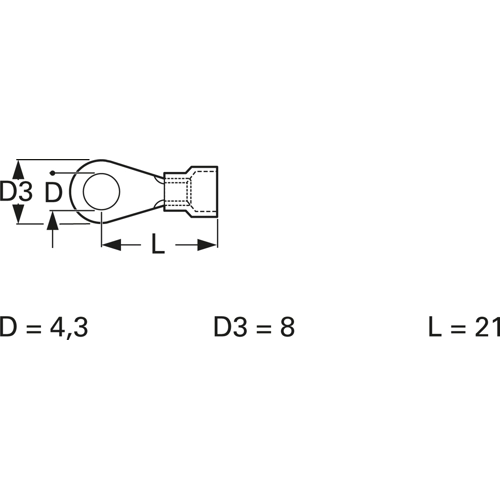

Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 105 °C | |
| Isolated | Yes | |
| Hole diameter | 4.3 mm | |
| Cable cross-section | 4.0-6.0 mm² | |
| Nominal size according to DIN | DIN 46237 | |
| Colour | yellow | |
| Version | ring cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M4 | |
| Material Insulation | PA | |
| Material | electrolytic copper |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85389091 |
| Original Packaging | Bag with 250 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
