3602A | Vogt
Insulated ring cable lug, 0.5-1.0 mm², AWG 22 to 18, 2.7 mm, M2.5, red, 3602A
Order No.: 07F9606
EAN: 4099889588309
MPN:
3602A
Unit Price (€ / pc.)
0.5355 € *
Available: 397 pcs.
Total Price:
13.39 € *
Price list
Quantity
Price per unit*
25 pcs.
0.5355 €
100 pcs.
0.4760 €
250 pcs.
0.4165 €
500 pcs.
0.3570 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lugs, insulated, type Vogt 3.
Made of tinned electrolytic copper, with crimp connection
Rated cross-section 0.5 to 1.0 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | red | |

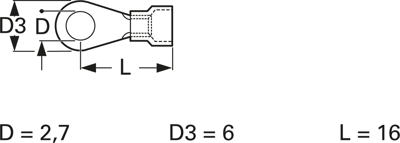

| Hole diameter | 2.7 mm | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.5-1.0 mm² | |
| Version | ring cable lug | |
| Material | electrolytic copper | |
| Material Insulation | PA | |
| AWG cross-section | AWG 22 to 18 | |
| Nominal size according to DIN | DIN 46237 | |
| Thread size | M2.5 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | CH |
| Original Packaging | Bag with 250 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
