3595A | Vogt
Insulated ring cable lug, 0.14-0.5 mm², AWG 26 to 22, 2.2 mm, M2, yellow, 3595A
Order No.: 07F9600
EAN: 4099889588279
MPN:
3595A
Unit Price (€ / pc.)
0.1904 € *
Standard delivery time from the manufacturer is: On Request
Ring cable lugs, insulated, type Vogt 3.
Made of tinned electrolytic copper, with crimp connection
Rated cross-section 0.14 to 0.5 mm².

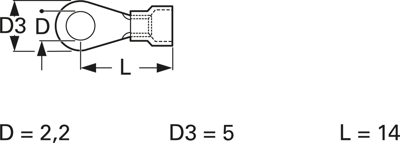

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 22 | |
| Hole diameter | 2.2 mm | |
| Colour | yellow | |
| Thread size | M2 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Nominal size according to DIN | DIN 46237 | |
| Cable cross-section | 0.14-0.5 mm² | |
| Material | electrolytic copper | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 250 pieces |
| Customs tariff number | 85389091 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
