3523A | Vogt
Uninsulated ring cable lug, 1.5-2.5 mm², AWG 16 to 14, 6.5 mm, M6, metal, 3523A
Order No.: 07F992
EAN: 4099889588712
MPN:
3523A
Unit Price (€ / pc.)
0.2035 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.09 € *
Price list
Quantity
Price per unit*
25 pcs.
0.2035 €
100 pcs.
0.1833 €
500 pcs.
0.1666 €
1000 pcs.
0.1511 €
5000 pcs.
0.1309 €
*incl. VAT plus shipping costs
Subject to prior sale

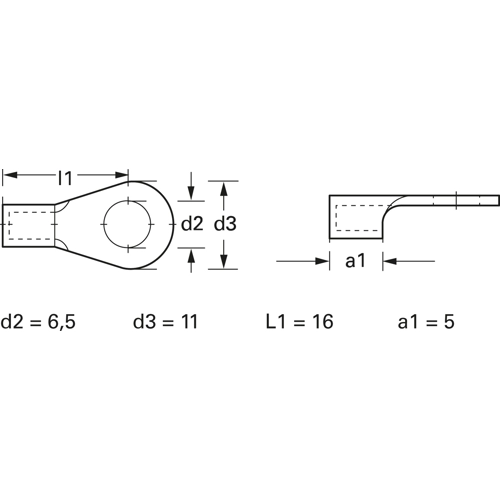

Cable lugs, ring tongue, not insulated, type Vogt 34../35.
To DIN 46234. With crimp connection
For rated cross-section 1.5 to 2.5 mm², type 35.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 6.5 mm | |
| max. operating temperature | 125 °C | |
| Cable cross-section | 1.5-2.5 mm² | |
| Version | ring cable lug | |
| Material | electrolytic copper | |
| AWG cross-section | AWG 16 to 14 | |
| Nominal size according to DIN | DIN 46234 | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
| Original Packaging | Bag with 100 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
